device details

vials and ampoules Headspace analysis

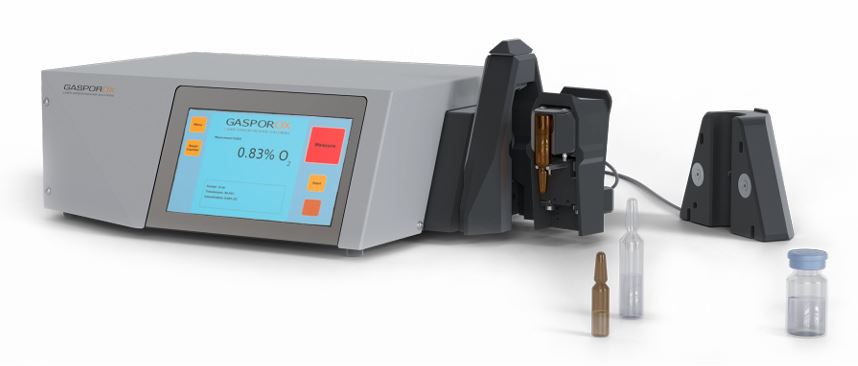

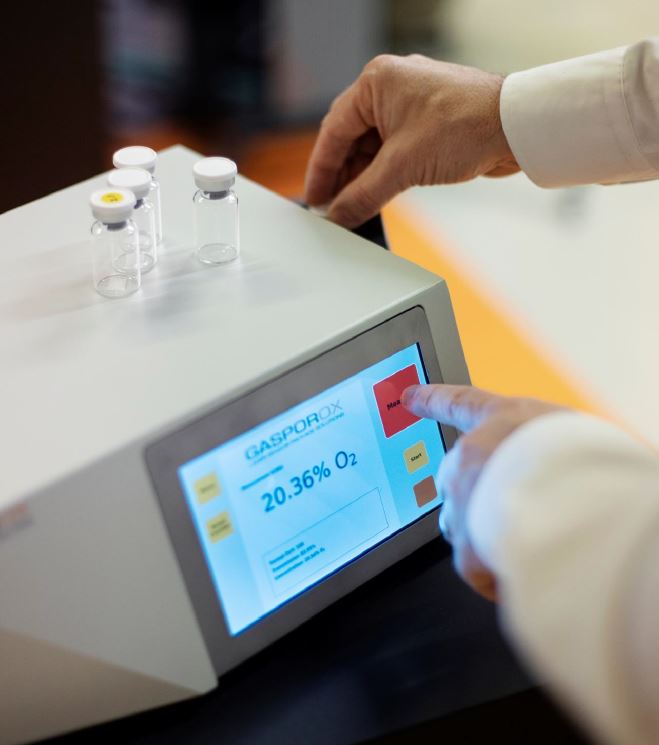

GPX1500 Vial

Instrument for quality inspection and CCIT of pharmaceutical vials and ampoules.

The GPX1500 Vial is a compact, non-destructive headspace analyser series for precise oxygen, carbon dioxide, pressure measurements in sealed pharmaceutical containers. Designed specifically for vials and ampoules, it delivers fast, accurate, and non-intrusive testing to ensure container closure integrity (CCIT) and product quality through laser-based headspace analysis (HSA).

Applications for the GPX1500 Vial

Compatible with both clear and amber ISO tubular vials (2R to 100R) and ISO ampoules (1 mL to 30 mL), the GPX1500 Vial is ideal for pharmaceutical packaging verification in development, QC, and small-scale production environments. It also supports a wide range of additional vial and container formats on request.

Available Variations

  • GPX1500 Vial O₂ – Measures oxygen (O₂) concentration in the headspace of sealed pharmaceutical containers. Ideal for oxygen-sensitive products requiring headspace gas analysis (HSA) and container closure integrity testing (CCIT).
  • GPX1500 Vial CO₂ – Accurately measures carbon dioxide (CO₂) levels in the headspace, supporting quality control of products packaged in CO₂-modified atmospheres.
  • GPX1500 Vial H₂O – Measures total internal pressure (in the range of 80 to 1050 mbar), offering a non-destructive way to assess pressure buildup or leakage in sealed containers.



get a quote

Specifications

Key Features and Technical Highlights

  • Non-destructive headspace gas analysis (HSA) for pharmaceutical vials and ampoules.
  • Calibration-free and parameter-free operation for easy setup and repeatable results.
  • Deterministic testing method compliant with USP <1207> standards.
  • Compatible with ISO tubular vials (2R to 100R), moulded vials (16 mm to 49 mm), and ampoules (1–30 mL).
  • Suitable for both liquid and solid pharmaceutical products.
  • No need for nitrogen or sample preparation.
  • Ideal for at-line, storage, or laboratory container closure integrity testing (CCIT).
